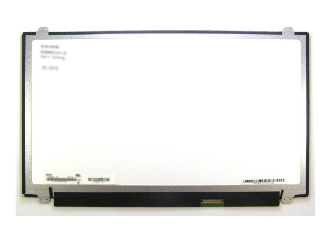

LG Display LP156WH3-TLT1 (also known as the LP156WH3 (TL)(T1)) (product code: LGD03DB) is a 15.6-inch LCD module utilizing a-Si TFT-LCD technology. It features a WLED backlight with an included LED driver and lacks touchscreen functionality. The LP156WH3-TLT1 has a resolution of 1366 (RGB) × 768 (WXGA), a 16:9 aspect ratio, and uses a vertical RGB stripe arrangement for the pixels. The display area measures 344.232 × 193.536 mm (width × height), with a visible area of 347.5 × 196.8 mm (width × height), and external dimensions of 359.5 × 223.5 × 3.8 mm (width × height). The surface is matte, and the product weighs 400g (maximum). The design is medium-thick (PCBA is flat, 3.4-4.0mm thick). The backlight utilizes a WLED edge-lit light source with a lifespan of 12,000 hours and includes an LED driver. The LP156WH3-TLT1 utilizes a 40-pin LVDS (1 channel, 6-bit) signal interface, using terminal blocks for connection. The display driver voltage is 3.3V (typical). Its typical vertical refresh rate (Fv) is 60Hz. It has an operating temperature range of 0 to 50°C, a storage temperature range of -20 to 60°C, and a vibration resistance of 1.5G (14.7 m/s²). It features a white LED backlight, an included LED driver, flip-chip terminals, and a matte finish. This model is recommended for notebook computers and other products.
